Features:
3 m to 3000 /60V DC Battery Testers for Production Line Testing of Battery Packs and Modules. Battery HiTester GP-IB and Analog Output.
- Ranges from 3 mO to 3000 Ω support coin-size to large-cell batteries
- Battery module testing
- High-voltage battery pack testing up to 60V
- Ideal for high-precision cell voltage measurements (accurate to 0.01% of reading)
- Measurement circuitry employs enhanced current regulation
- Fast 10 ms response and 8 ms sampling time for high-speed measurements
- Large (low-resistance) cell testing
- High-speed mass production testing of coin batteries
- Battery research and development measurement applications
- Choice of PC interfaces for full remote operation
- Fuel cell stack measurements

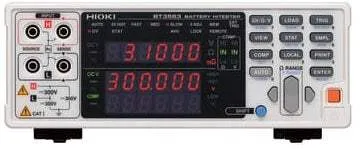

The Hioki BT3562 6V/60V Battery HiTesters and BT3563 6V/60V/300V Battery HiTester support simultaneous high-speed measurement of internal resistance (IR) and battery voltage (OCV) for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications.
High Speed Interfaces
The fastest 10 ms measurement data can be transferred via the standard RS-232C interface at up to 38,400 bps. Models with the -01 suffix include a GP-IB interface.
Handler Interface
Triggering, measurement configuration loading, and zero adjustment can be externally controlled. Output signals provide comparator results, end-of-measurement events, and measurement errors.
Analog Output
The Hioki BT3563-01 and BT3562-01 provide analog output of resistance measurement values. This is convenient for combining re-corded data from multiple locations or of various data types, such as for logging long-term measurements and for fuel cell evaluation.
