Clamp Meters: Meter Type - Clamp Meter; Measures - Volts AC/DC,Current AC/DC, In-rush, Resistance, Continuity, Frequency; Display - LCD (Detachable Wireless); Volts Range AC - 0-600V; Volts Range DC - 0-600V; Amps Range AC - 0-2500A; Amps Range DC - 0-600A; Resistance - 60k Ohms; Frequency Range - 500Hz; Parts Included - iFlex Flexible Probe, Soft Case; Additional Information - True RMS, Integrated Low Pass Noise Filter; Manufacturer Series - 381
Features

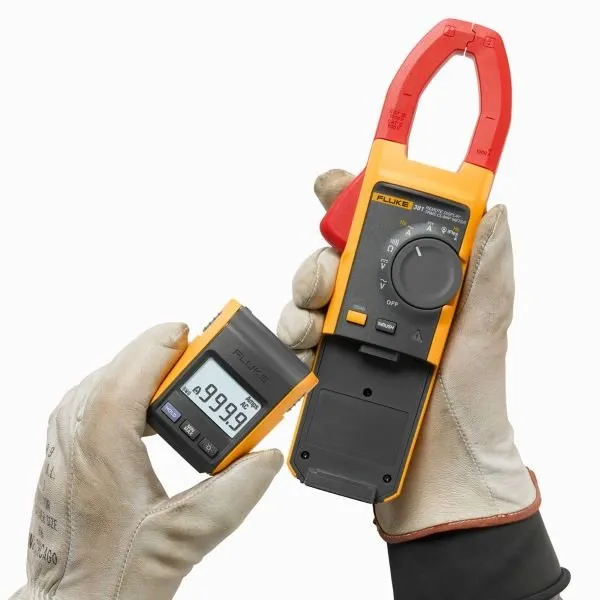

- Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy

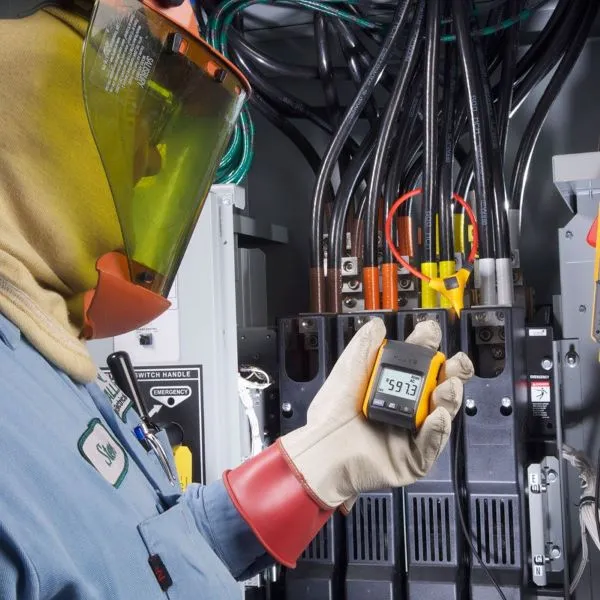

- The removable magnetic display can be conveniently mounted where it is easily seen

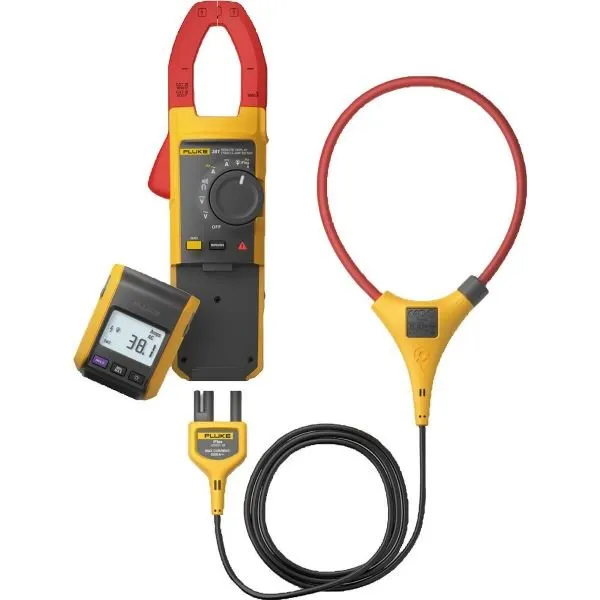

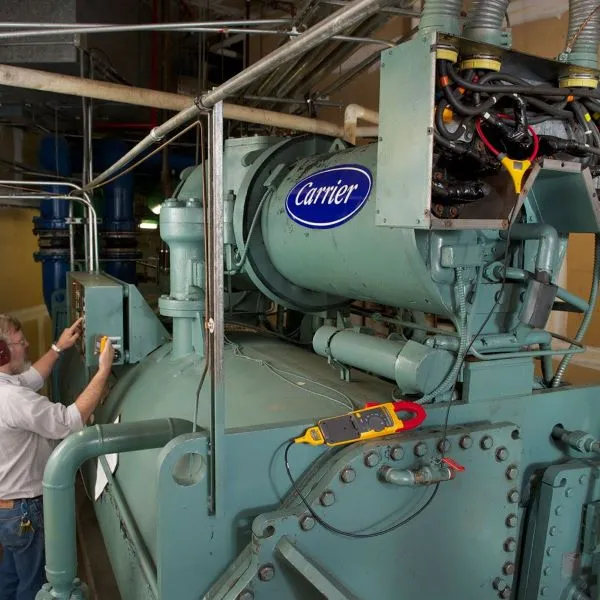

- iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
- CAT IV 600 V, CAT III 1000 V
- Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Three-year warranty
- Soft carrying case
Specification
- Amps Range AC: 0 - 2500A
- Amps Range DC: 0-600A
- Volts Range AC: 0-600V
- Volts Range DC: 0-600V
- Frequency Range: 500Hz
- Resistance: 60k Ohms
- Display: LCD (Detachable Wireless)
- Parts Included: iFlex Flexible Probe
- Jaw Opening: 34mm
- Flexible Current Probe Diameter: 7.5mm
- Flexible Current Probe Cable Length
(head to electronics connector): 1.8mm - Size: 277 x 88 x 43 mm (55 mm for remote unit)
- Weight: 350g
