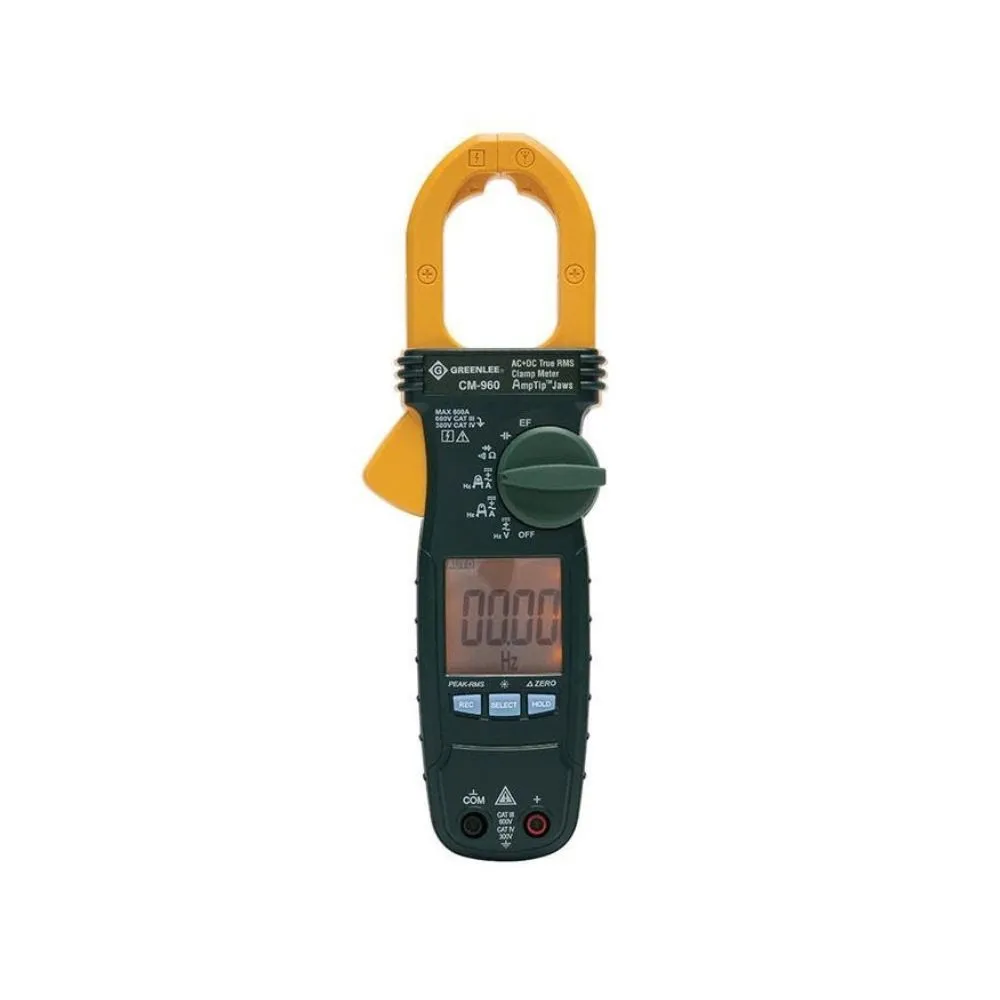

Product Details
＋
Greenlee CM-960 Includes
- (1) Clamp Meter
- (2) 1.5V AAA Batteries
- (1) Test Leads
- (1) Carrying Case
Greenlee CM-960 Features
- Measures AC DC current
- AC and AC DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Peak-RMS measures motor inrush current
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes - non-contact or using a single test lead
- Data hold
- Recording of Maximum, Minimum, and Average readings
Greenlee CM-960 Specifications
| Amperage Measurement | 60, 600 Amps AC DC |
| Display | LCD, 6000 Count |
| Frequency Rating | Voltage and AmpTip Current |
| Jaw Opening | 1.18'' (30 mm) |
| Measurement Category | CAT III 600V, CAT IV 300V |
| Replacement Part | TSG-3 Test Leads, TC-10 Carrying Case |
| Resistance Measurement | 600, 6k, 60k Ohms |
| Standard | CAT III, C/US UL Listed, CE |
| True Power | AC DC True RMS |
| Voltage Measurement | 600 Volts AC DC |
