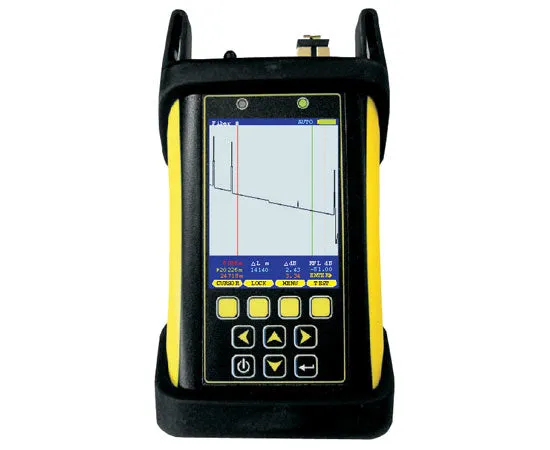

Trek II OTDR Multimode 1300nm

With an unbeatable combination of a small pocket-sized form factor, a 2.8" high-resolution color LCD display, and some of the lowest pricing in the industry, Trek multimode OTDRs are the wise choice for cost-conscious buyers who need to perform basic troubleshooting or restoration tasks on multimode optical fiber networks. All this from OTDRs that really are pocket-sized and fair priced, yet have comparable features and specifications to other OTDRs in their class. The Trek II OTDR can locate breaks in multimode optical fibers up to 12 miles in length within 6 feet.

Features

2.8" color LCD display automatically rotates based on orientation of OTDR (portrait vs. landscape)
Live Mode allows users to expand OTDR display onto larger laptop screen
Automatically locates events and places them in an internal event table
Full horizontal and vertical pan/zoom function
User-selectable parameters such as index of refraction test mode, pulse width, and averaging
Integrated user help screens
SC/UPC connector port
USB interface for downloading stored readings
Integrated visual fault locator
Re-chargeable Lithium Polymer battery allows for up to
20 hours of normal usage

Specifications

Optical Specifications
Output Wavelength	1300nm
Fiber Type	Multimode
Dynamic Range (SNR=1)¹	25 dB
Event Dead Zone²	2 meters (typical)
Attenuation Dead Zone³	7 meters (typical)
Maximum Data Points	64000
Data Point Spacing	1 meter
Pulse Width	1, 2, 5, 10, 20, 50, 100 meters
Index of Refraction	1.4000 to 1.6000
Distance Accuracy	1 (distance in meters/10000)
Distance Range⁴	20 kilometers
Number of Stored Traces	Maximum trace distance: up to 400 // Minimum trace distance: 3000

General Specifications
Display Type	High-resolution Color LCD
Display Size	2.8" diagonal
Battery Type	Lithium Polymer
Battery Life	up to 20 hours normal usage
Dimensions	2.87" x 4.42" x 1.25"
Weight	10 ounces (284 g)
